Tethered UAV Optical Transceiver

3G/HD-SDI
RS232/485/422
CAN
10/100M
Product description: Tethered UAV optical transceivers generally use point-to-point communication. The equipment is installed inside the aerostat (drone, airship, etc.), and the video signal and collected data are transmi
INQUIRY

Overview:

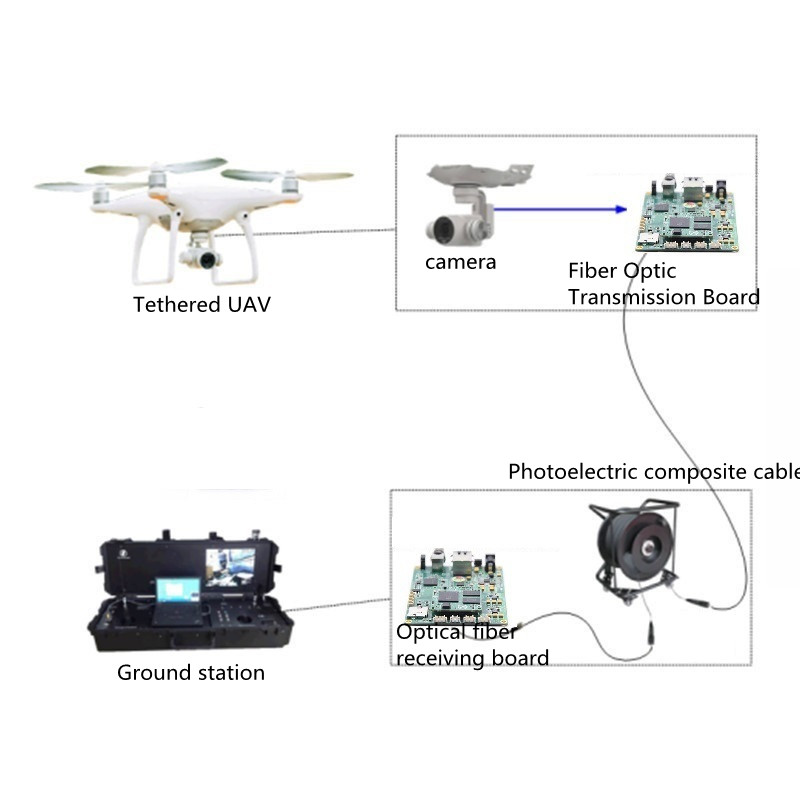

SUCCLINK tethered UAV optical transceiver generally adopts point-to-point communication. The equipment is installed inside the aerostat (drone, airship, etc.). The video signal and collected data are transmitted to the receiver of the ground workstation through the tethered photoelectric composite cable. The workstation also It can control the equipment in the aerostat and two-way communication through the optical transceiver.

Functions can be customized on demand, bare boards, finished optical transceivers (aviation plugs), etc. can be customized.

Features:

1. Support 3G/HD-SDI, analog video, RS232/422/485 data, CAN bus, Ethernet and other signal transmission

2. Support user customization (functions, sizes, and installation methods can all be customized)

3. Optional high-reliability aviation connector

4. Strong anti-electromagnetic interference ability

5. Meet the requirements of three preventions, anti-vibration

6. Built-in perfect lightning protection

Technical Parameters：

Item	Typical value
Video Interface
Connector	BNC
Bit rate	2.97Gb/s,1.485Gb/s and 270Mb/s auto adaptive
Impedance	75Ω
Return loss	>15dB
Output level	800mVp-p±10%
Rise and fall time（HD-SDI）	≤270ps
Rise and fall time（SD-SDI）	≤1.50ns
SD-SDI Alignment jitter (1KHz)	≤0.2UI
SD-SDI Timing jitter (10Hz)	<0.2UI
HD-SDI Alignment jitter (100KHz)	≤0.2UI
HD-SDI Timing jitter (10Hz)	<1.0UI
Standard	Comply to SMPTE 424M 3G-SDI, SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard
RS485 Interface
Connector	PHOENIX connector
Baud rate	0~115.2Kb/s
Bit error ratio	<10^-9
Duplex	Half-duplex
