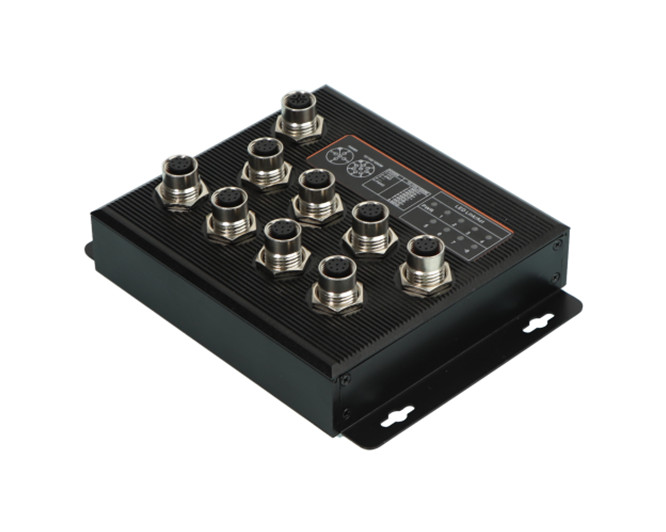

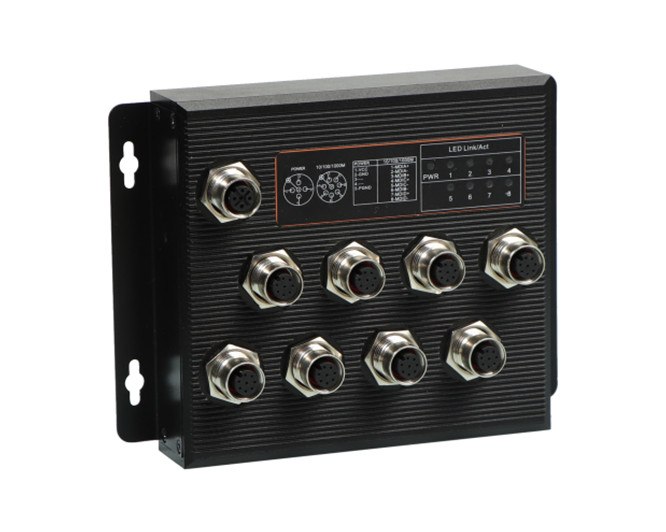

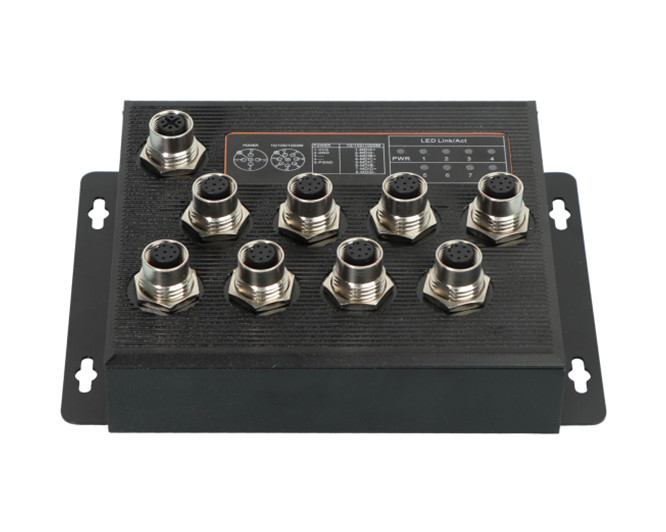

The BH600-508I-M12 series non-network management Ethernet switches comply with the FCC, CE, and RoHS standards and meet industrial design requirements. The BH600-508I-M12 series non-network management Ethernet switches can meet the requirements of -40 ° C to 85 ° C operating temperature and complex electromagnetic environment. It has super ruggedness, supports 8 gigabit electrical ports, uses M12 aviation connectors to ensure a firm connection, and can work reliably even under environmental disturbances such as vibration and shock. Widely used in vehicle-mounted PIS, CCTV, vehicle intercept surveillance video, automated intelligent factory, etc., to provide users with reliable and cost-effective solutions for Ethernet device connection.
Product features:
◆8 10/100/1000BASE-T adaptive Ethernet interfaces, supporting automatic MDI/MDI-X connection;
◆ Support M12 interface form, ensure the sealing and fastness of the interface connection, in line with EN50155 industry standard requirements;
◆ The cache is up to 2Mbit, which can meet the smooth transmission of multi-channel video stream;
◆Support broadcast storm suppression, reliability: MTBF≥300000 hours;
◆ Plug and play, convenient and quick;
◆ High strength closed aluminum shell, IP40 protection grade, no fan shell fan heat, durable, stable and reliable;
◆ Industrial power supply with wide input range, convenient for customer application. DC power input: 12~52VDC
◆ -40℃~85℃ working temperature, meet the requirements of harsh industrial environment.
Technical parameters:
Standard:
The IEEE 802.3 I (10 base-t)
The IEEE 802.3 u 100 base - (TX)
IEEE802.3 ab (1000 base-t)
Swap attributes:
The MAC table: 16 k
Packet buffer: 2Mbit
Packet forwarding rate: 23.8Mpps
Jumbo frame length: 10Kbytes
Switching delay: <10μs
Interface:
Gigabit port: 10/100/1000Base-T(X), M12 X-code interface
Indicator light
Power indicator: PWR1, PWR2
Interface indicator: Link/ACT
Power supply:
Input voltage: 24VDC(12-52VDC
Power interface: M12
Power: 5.6 W @ 24 VDC
Overload protection: Supported
Reverse connection protection: Supported
Mechanical structure:
Case: Metal
Cooling mode: natural cooling, no fan
Protection level: IP65
Size: 158 mm * 121 mm * 43.5 mm
Weight: < 0.9 Kg
Installation: wall mounted
The environment;
Operating temperature: -40℃ ~ +85℃
Storage temperature: -40℃ ~ +85℃
Relative humidity: 5-95% no condensation
∷
