3G/HD-SDI optical transceiver

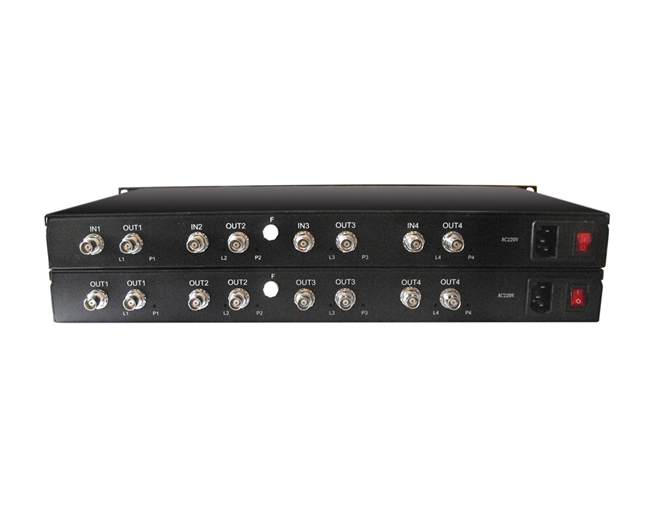

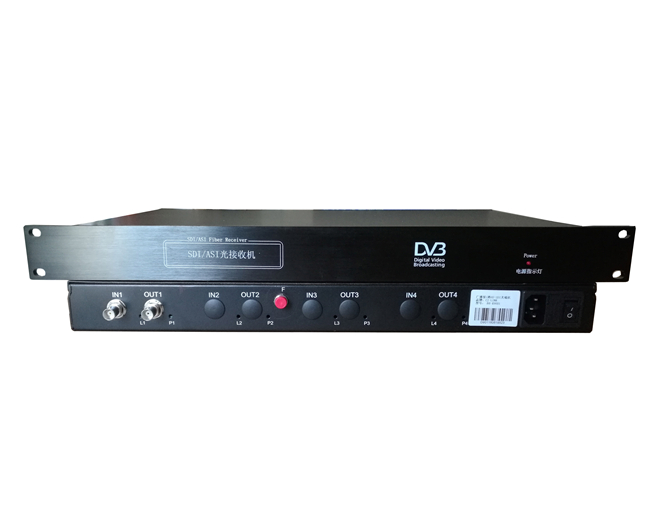

Broadcast 1~8 channel HD-SDI transmitter

HD-SDI
1/2/4/8
Fiber:1
Product description: Broadcast 1~8 channel HD-SDI transmitter,HD-SDI To Fiber Optic is an ideal and economic solution for broadcasting or surveillance applications.
INQUIRY

HD-SDI To Fiber Optic is an ideal and economic solution for broadcasting or surveillance applications. It receives one HD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) .
Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
FEATURES
· 1 channel video and audio transmission of digital video signal over optic fiber
· Handles pathological pattern
· Automatic cable equalization to ensure signal integrity
· Automatic reclocking 270Mbit/s - 1.48Gbit/s
· Support signal type: 270Mbit/s to 1.5Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards· Long transmission capability at least 10 km(6.2 miles) , up to 80 km
· Terminal block power input for industrial application
·Supports hot swapping and hot plugging
·Simplex LC/PC single mode optical connection
SDI optical transceiver is hd SDI necessary transmission equipment of the monitoring system, how to identify the SMPTE standard SDI optical transceiver also confused with so many users, it can through SDI pathological code test to verify. Transfer characteristic difference of hd-sdi optical transceiver reluctantly when transmission rate signal specifications are available, but when the problem of irregular rate signal transmission immediately reflected, under 1.5 G rate (720 p or 1080 I used) lower, problems of probability under 3 G rate (1080) p application problems of probability is high, main performance for high definition video transmission sometimes appear in the process of the splash screen, black screen, blue screen, images cannot guarantee continuous smooth playback, the cause of these problems basically has two: first, adopt hd-sdi optical transceiver scheme not mature or design defects, this reason minority; Second, cost factors, on the market most of the hd-sdi optical transceiver using common SFP optical module, which USES the rate of 1.25 G and 1.25 G rate digital SFP optical module instead of hd-sdi special VIDIO optical transceiver SFP optical modules, so inevitable when transmission rate of irregular large error. Hd-sdi application field of optical transceiver have higher picture quality requirements, natural intolerable, the picture is not smooth, so should adopt hd-sdi special VIDIO optical transceiver SFP optical module, to ensure that high-definition image transmission in the process without the splash screen, black screen, the phenomenon such as blue screen.
SDI TO FIBER CONVERTER Typical applications
Animal film； live fiber transmission；the Remote television /broadcasting station；High performance(error-free) surveilance networks in Army or security

SPECIFICATION

Opitcal：

Wavelength	1310nm&1470nm~1610nm
Output Power	-9~-3dBm / -3~+2dBm
Optic fiber	50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity	-18dBm
Optical connector	FC/LC/PC (optional)
Distance	0~500M (MM) / 0~80KM (SM)

Video:

SDI Input
Signal Type SDI	SMPTE 424M, SMPTE 292M, SMPTE 259M
Data Rates	270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Connector	BNC 75 Ohm
Number of tranmitter channel	1
Number of tranmitter Loopout	1
Number of receiver output	2
General：
Input Power		AC100~260V
Power consumption (maximum)		Transmitter: 1.8W Receiver: 1.5W
Operating temperature		0°C to 55°C
Storage temperature		-10°C to 70°C
Operating humidity		0 ~ 95% (non-condensing)
Net Weight		210g /pair （with Power supply 440g/pair）
Case material		Aluminum

ordering information:

Model	function	Fiber	备注
BH-X9001	1 channel HD-SDI	1 core	19 inch 1U
BH-X9002	2 channel HD-SDI	1 core	19 inch 1U
BH-X9004	4 channel HD-SDI	1 core	19 inch 1U
BH-X9008	8 channel HD-SDI	1 core	19 inch 2U
