Video optical terminal

  • fbier: 1 Core
  • 1~32 Channel
  • Data:Rs485
  • Product description: CJ series Digital Fiber Optical multiplexers were independent developed by CJ-LINK, using advanced large scale programmable circuit and total digital uncompressed technology, with high performance sp
  • INQUIRY
■ Product introduction:

CJ series Digital Fiber Optical multiplexers were independent developed by CJ-LINK, using advanced large scale programmable circuit and total digital uncompressed technology, with high performance special design for small scale fiber transmission of video, audio, data, Ethernet and switching simultaneously; High integration and stability, low power consumption, high adaptive capacity, total surface decoration and simple structure satisfy customer various demands in many occasions.
■ Product Characteristics:

◆Industrial design, SMT craftwork.
◆1.5Gbit/s complete digital fiber transmission platform, Multi- Service and flexible configuration.
◆Standalone, chassis for option.
◆Single fiber transmission, optional for double fiber.
◆PAL/NTSC/SECAM all compatible, carrier-grade quality
◆Dynamic indication of operating status
◆Field deployment without adjustment.
◆Auto reset function more stable.

■ Technical Specification:

1. Optic fiber

Connector:  FC/PC, SC/PC, ST/PC
Transmit wavelength: Multi-mode 850nm/1310nm, single mode: 1310nm/1550nm
Transmit distance: 0 ~ 20 Km (Single mode fiber, standard type)
0 ~ 60 Km (Single mode fiber, long-distance type)
0 ~ 120 Km (Single mode fiber, extra long-distance type)
0 ~ 2 Km( Multi mode fiber, standard type)
Optical transmit power: Finer than -8dB
Receive sensitivity: Finer than -8dB
Optical dynamic range: 12dB
Maximum optical loss: 12dB

2. Video
Connector:  BNC Socket
Video Band width: 8 MHZ
Digitization: 8 bit
DG：         < 1%（Typical value）
DP：         < 0.80（Typical value）
Vertical slope:  < 0.5%( Max value)

SNR:         >67dB ( Typical value）
In/Output impedance: 75Ω (Unbalance)
In/Output Voltage: 1.0Vpp( Typical value）
Color brightness time extension difference：     10ns（Typical value）
Color brightness gain difference：             ±5%（Typical value）

3. Data
Data channel:           Bi-direction
Connector:              Industrial Wiring Terminal
Connector type:         RS232/RS485/RS422/Manchester code
Work mode:            Duplex/Half duplex
Baud rate:              0 ~ 100kbps
Error code rate：        <1×10 -9

4. Work condition
Operating temperature: -10°C ~ +55°C
Operating humidity: 0 ~ 95% (without coagulation)
Power supply: 5.2W DC 5V
No causticity and solvent, dust free, and no strong magnetic interference.

5.  Dimensions
dimensions: 155mm (length) * 122mm (width) * 44mm (height)



■Ordering information

Model

function

Fiber

Transmission distance

CJ-1V

1 channel Video

1 core

20KM

CJ-1V1D

1 channel Video,1 channel RS485 Data

1 core

20KM

CJ-2V

2 channel Video

1 core

20KM

CJ-2V1D

2 channel Video,1 channel RS485 Data

1 core

20KM

CJ-4V

4 channel Video

1 core

20KM

CJ-4V1D

4 channel Video,1 channel RS485 Data

1 core

20KM

CJ-8V

8 channel Video

1 core

20KM

CJ-8V1D

8 channel Video,1 channel RS485 Data

1 core

20KM

CJ-16V

16 channel Video

1 core

20KM

CJ-16V1D

16 channel Video,1 channel RS485 Data

1 core

20KM

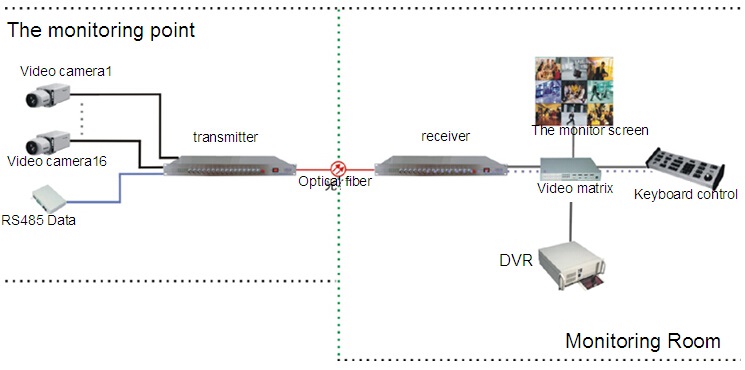

■ Typical solution

Video optical terminal
