E1 Protocol converter (bridge)

E1 Protocal Converter

1/4/8/16E1
1~4 10/100M Interface
Product description: 1/4/8/16 E1 Interface Converter
INQUIRY

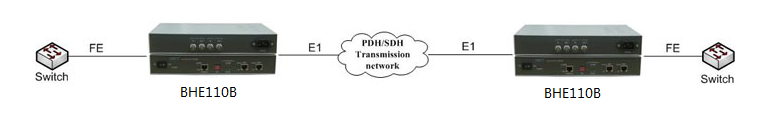

The BH Converter series from SUCCLINK will help carriers and enterprises to makefull use of the traditional network in this TCP/IP Era. (Super VirtualPrivate Ethernet Equipment) series are converter for interconnecting FastEthernet (FE) with E1 which are based on the technique of Ethernet-over-PDH(EoPDH), a new breed of products integrating advanced Ethernet bridging withfully channelized TDM capabilities.

BHE110B eries adopt private high-efficiencyEoPDH encapsulation technology, raising the pure Ethernet bandwidth up to2048kbps per E1 channel. While the same type of other brand devices provideless than 1984kbps per E1 channel.

§ Provides 1/2/4/8/16 unframed E1
§ Supports E1 line loopback detection, alarm prompt and close Ethernetinterface, to protect downstream service
§ Provides 1 or 4 10/100BASE-TX Fast Ethernet interfaces
§ Supports transparent transmission for VLAN Ethernet frames
§ Supports 802.1p Class of Services and 802.3x flow control function
§ Optional power supply available: -48VDC or 220VAC

E1 Interface：
Standards Compliance: ITU-T G.703
Line Rate：2048kbit/s±50ppm
Line Code：HDB3
Jitter Tolerance：ITU-T G.823
Impedance：75 ohm and 120 ohm
Clock：Internal or network clock optional.
Connector：BNC

Ethernet Port：
Standards Compliance: IEEE 802.3/802.3u,IEEE 802.1Q(VLAN)
Rate：10/100M auto-adaptive
full duplex and full-duplex working modes
Support AUTO-MDIX
Connector：RJ45

Working Conditions：
Power：AC180V～AC240V，50HZ DC–36V～-72V
Power Consumption ：<5W
Working Temperatures：0℃ ～ 50℃
Storage Temperature ：-40℃ ～ +70℃
Relative humidity ：95 %

E1 Interface converter

Part No	E1 Interface	Service Interface 10/100BASE-TX	Structure
BH-E110	1 (unframed)	1	Mini-desktop
BH-E210	2(unframed)	2	Mini-desktop
BH-E410	4(unframed)	4	Mini-desktop
BH-E810	8(unframed)	4	1U, 19 inches
BH-E1610	16(unframed)	4	1U, 19 inches
