Product description: The CJ3001S-1E is a high performance, and reliable, 1-channel SD/HD-SDI video optical transceiver, which perform real-time, loss-free and high-quality video transmission over an optical line. Besides,
INQUIRY

1.1 OveCJiew

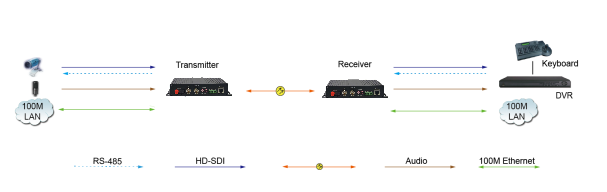

The CJ3001S-1E is a high performance, and reliable, 1-channel SD/HD-SDI video optical transceiver, which perform real-time, loss-free and high-quality video transmission over an optical line. Besides, CJ3001S-1E provides 100M bandwidth Ethernet interfaces , one bi-directional RS485 data channel, and optional audio/contact closure/RS422/RS232 data transmission, which can be widely used in TV live broadcast, high-definition video conference, high-definition video monitoring, intelligent transportation system and public security system.

1.2 Feature

n Comply with SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 1.485Gb/s and 270Mb/s

n CJ3001S-1E: one SD/HD-SDI input (BNC), one looping SD/ HD-SDI output(BNC) and fast Ethernet interfaces( 100M bandwidth)

n One auxiliary channel, which can be 1-channel bi-directional audio, or two-channel unidirectional audio, or 2-channel contact closure input/output, or 1-channel bi-directional RS422/RS232 channel

n One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate

n Supports 1080P@30,25,24, 29.97, 23.98、1080I@60,50,59.94、720P@60,50,30,25,24, 59.94, 29.97, 23.98 and 625i、525i format, when input is 1080P@29.97, 23.98、1080I@59.94、720P@59.94, 29.97, 23.98, the output is 1080P@30, 24、1080I@60、720P@60,30, 24 respectively

n With integrated cable equalizer

n Embedded ESD and surge protection circuit to prevent damage from static and thunder

n With NOP (No optical signal) alarm indications, output status indicator and input lock indicator

Technical Specification：

Item	Typical value
Video Interface
Connector	BNC
Bit rate	1.485Gb/s and 270Mb/s auto adaptive
Impedance	75Ω
Return loss	>15dB
Output level	800mVp-p±10%
Rise and fall time（HD-SDI）	≤270ps
Rise and fall time（SD-SDI）	≤1.50ns
SD-SDI Alignment jitter (1KHz)	≤0.2UI
SD-SDI Timing jitter (10Hz)	<0.2UI
HD-SDI Alignment jitter (100KHz)	≤0.2UI
HD-SDI Timing jitter (10Hz)	<1.0UI
Standard	Comply to SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard
Audio Interface (Optional)
Connector	3.5mm or RCA
Impedance	Input high-impedance, output 600Ω
Quantization grade	20bits
Sample frequency	48KHz
Audio input/output voltage	2VP-P
Bandwidth	20Hz~20KHz
Total Harmonic Distortion	0.1%
Impedance	600Ω
FE Interface
Connector	RJ45
Frame length	From 64 bytes to 1552/1536 bytes
Working mode	Auto-negotiation by default
Bit rate	10/100Mb/s
Duplex	Half/full duplex
Port VLAN	Default settings: closed. That is , all the port share the same LAN.
Flow Control	Default settings: open
Standard	IEEE802.3u 100Base-TX/ IEEE802.3 10Base-T
RS485 Interface
Connector	PHOENIX connector
Baud rate	0~115.2Kb/s
Bit error ratio	<10^-9
Duplex	Half-duplex
Power and Consumption for desktop equipment
Power supply	DC 5V
Power consumption	3W±10％
Power and Consumption for rack mounting chassis
Power supply	AC 220V /DC-48V
DC input voltage range	-36～-72V DC
AC input voltage range	176~264V
Power consumption for each card	3W±10％
Environment Requirements
Working temperature	-30～60℃
Relative Humidity	≤95％, no condensation
Storage temperature	-40～85℃
Equipment dimension

Note: The optical module is optional for users, the default is 20Km, other long distance needs to be declared when ordering.

Model Guide:

Model	Function
CJ3001S-1E	1 channel HD-SDI video +1 two-way audio +1 RS-485 +100M network
CJ3001S-1SV-1SA	1 two-way HD-SDI video +1 two-way audio
CJ3001S-2V-1E	2 channel HD-SDI video +1 two-way audio +1 RS-485 +100M network
CJ3001S-3G-1E	1 channel 3G/HD-SDI video +1 two-way audio +1 RS-485 +100M network
CJ3001S-1SV-1SA-1E	1 two-way HD-SDI video +1 two-way audio+1 RS-485 +100M network
