BH series PDH Optical Transceiver

The BH series PDH fiber optic multiplexer modulates 4/8/16*E1 into optical signals, then transmitsthe converted signal over a fiber optic cable for extended distances up to120km. 1+1 redundancy is available for optical interface to maximize uptime forthe key customers of carriers and ISPs.

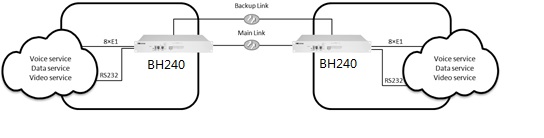

The BH series provide reliable point-to-pointdata integration solutions at a reasonable price. It offers a cost-effective andquick deployment alternative for carriers concentrating TDM-based user serviceover optical fiber. Both standalone and central rack solution support remotemanagement and online upgrade.

§ Adapt to large-scale chips, simple circuit, low power consumption, highreliability

§ Dual optical link with 1+1 protection, optional secondary link providesautomatic backup

§ Extends the transmission distance up to 120km

§ Operate over multimode or single mode fiber

§ Optional dual-strand fiber and single-strand fiber (WDM technology)

§ Provide 4/8/16 E1s with 120ohm Balanced or 75ohm Unbalanced interface.

§ Built-in loop back BERT for E1 channels

§ Provide one RS232 asynchronous data interface

§ Provide one management interface, realizing centralized monitor andsupporting system update

§ In-band management of both local and remote units

§ Compact structure with 1U×19inch

§ Optional power supply, -48V DC or 220V AC selectable
