BH series PDH network Optical Transceiver

BH series Multi-service PDH Fiber Optic Multiplexer provides idealsolutions for building fiber-based E1 and IP networks. It converts 4 or 8 or 16E1s plus 4 Ethernet ports data to optical signal and transmits the convertedsignal over the fiber cable.

Ethernettransmission utilizes 4 integrated Ethernet ports which support 802.1Q VLAN Tagfunction. The electrical Ethernet ports can operate in half or full duplexmode. IEEE 802.3x Flow Control and backpressure are also supported.

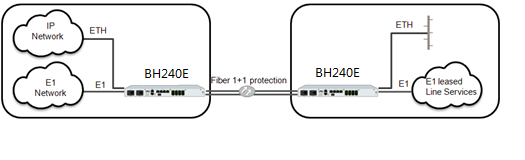

BH series supports redundant power supply andsecondary link options, enhancing system reliability. The optional secondarylink provides backup using automatic switch over upon main link failure.

§ Dual optical link with 1+1 protection, optional secondary link providesautomatic backup

§ Supports single mode or multimode fiber

§ Optional dual-strand fiber and single-strand fiber (WDM technology)

§ Provides 4/8/16xE1 with 75ohm unbalanced or 120ohm balanced interfaces

§ Built-in BER tester for E1 channels

§ Supports Loopback on E1 channels

§ Provides 4x10/100BASE-TX Ethernet ports

§ Support auto negotiation, MDI/MDI-X auto-sense, 10M/100M, full/half duplex

§ Supports 802.1Q VLAN Tag function

§ Supports port-based, 802.1p and DSCP ToS scheme with 2-level priorityqueues

§ Supports 802.3x Flow Control function

§ Provides Console (RS232) management Interfaces and optional SNMP managementinterface

§ Compact structure with 1U×19inch, low power consumption and highreliability

§ Dual power supply, -48V DC and 220V AC selectable
