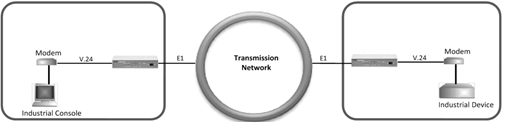

BH-E1R232 interface converter series is developed using SUCCLINK self-developed ASIC. E1 to RS232 converter provides conversion between ITU-T G.703 standard E1/ FE1 interface and single RS232 port and provides safe and seamless connection of communication between different devices with different interfaces. The device applies RS232 data transparent transmission. The centralized cards are also available, attached in SUCCLINK BH-E4U-16
§ Provides 1xE1 interface, supports both 75Ω unbalanced and 120Ω balanced (auto-selectable).
§ Provides 1xRS232/485 interface, with data rate auto-negotiation.
§ Provides DIP switches for setup and maintenance testing.
§ Provides a complete alarm and LED status indicator.
§ Provides E1 facility loopback.
§ Optional power supply available: -48VDC or 220VAC
|
Part No |
E1 Interface |
Service Interface |
Structure |
|
BH-E1R232 |
1*E1 |
1*RS232 |
Mini-desktop |
|
BH-E1R485 |
1*E1 |
1*RS485 |
Mini-desktop |
|
BH-E1-4R232 |
1*E1 |
4*RS232 |
1U\19 inches |
