V.35 protocol converter

E1 To V.35 Interface converter

E1/FE1
V.35
Product description: E1 To V.35 Interface converter
INQUIRY

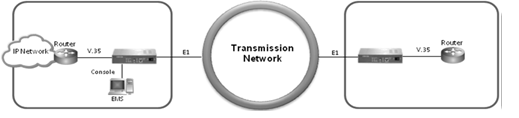

SUCCLINK BHE135B series are access gateways for bridging E1 and V.35 interfaces. They can easily achieve the goal of bearing packets from routers on E1 links. No upgrading transmission network, no expensive ADM equipments working as middle men. This advanced but simple solution fits carriers and service providers quite well.

BHE135B typically has one upstream E1 interface and one V.35 interface. E1 interface follows the recommendations of G.703 and G.704 and supports 75 ohm unbalanced connector and 120 ohm balanced RJ45 connector.
§ BHE135U provides 1×V.35 interface and conversion of unframed E1
§ BHE135A and BHE135B provide 1×V.35 interface (n×64K, n=1~32) and conversion of configurable framed or unframed E1
§ All V.35 clock modes (DCE/DTE) are supported
§ Provide 1×E1 interface with 75ohm/120ohm
§ BERT inside
§ BHE135B provide a console management interface for end-to-end management
§ Optional power supply available: -48VDC or 220VAC

Part No	E1 Interface	Service Interface	Management Interface
BH-E135U	1*E1	1*V.35	unmanageable
BH-E135A	1*FE1	1*V.35	unmanageable
BH-E135B	1*E1	1*V.35	Console
