V.35 protocol converter

V35-10/100M Interface Converter

V.35
10/100M
Product description: BH-V35E interface converter provides easy conversion from V.35 channel to standard 10/100 M Ethernet interface, and delivers Ethernet services over existing V.35 lines. It can be used widely in connec
INQUIRY

Overview
BH-V35E interface converter provides easy conversion from V.35 channel to standard 10/100 M Ethernet interface, and delivers Ethernet services over existing V.35 lines. It can be used widely in connecting between WAN and LAN.
Local management of the BH-V35E Converter is provided via DIP switch. The LED on front panel monitor the V.35 link, Ethernet LAN.

Features
IEEE 8023,802.3u completely compatible comply with ITU-T V.35
Transmission of Ethernet over V.35 line

Specification
V.35 interface:
Data rate: N ×64Kbps (N=1~64)
Interface type: DCE.
Internal and external clock user-selectable
Connector: DB25

Ethernet interface:
IEEE802.3 completely compatible
Interface type: 10/100M
MAC (LAN) table size: 10,000
Buffer size: 256 frame
Forwarding rate: 6000pps
Compress type: enhanced tinygram
Connector: RJ45

Console port:
RS232 console port for an ASCII terminal
Date format: 9600bps, 8-bit data, 1-bit stop flag
Function: software upgrade, loop configuration, status monitoring
Connector: RJ45

Others
Power: Both 220V AC (165V~265V) and -48V DC (-36V~-72V)
Power dissipation: < 6W (standalone), < 5W (card)

Envirement
Operating Temperature: -5°C~+45°C
Store Temperature: -20°C~+70°C

Relative humidity: 5%~ 95% no coagulation

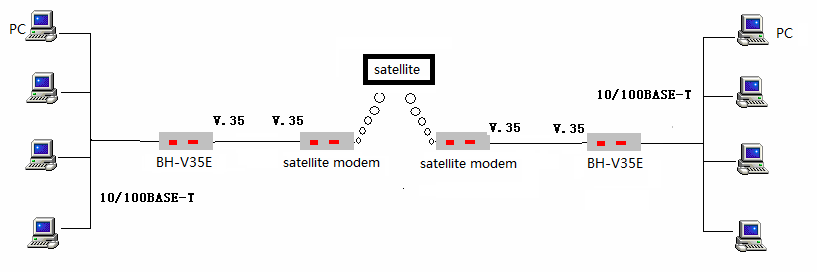

V.35/10(100)BaseT Interface converter
