fiber media converter chassis

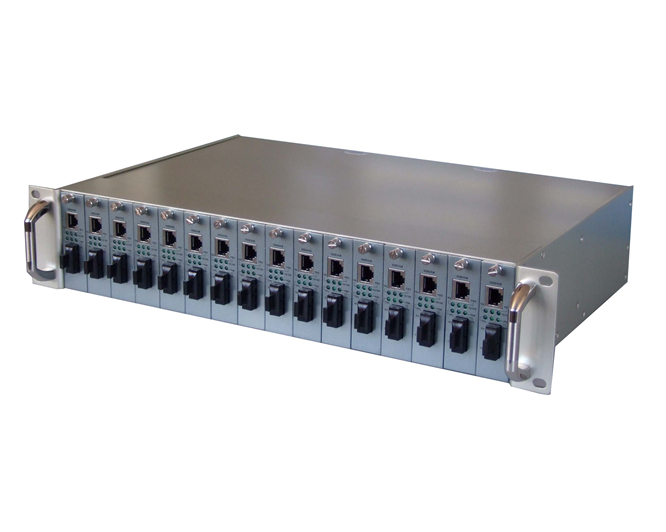

CJ-E16-2U fiber media converter chassis:
CJ-E16-2U chassis is a highly integrated fiber media converter center device,up to 16 pieces 100M or 1000M multimode and single mode fiber media converter card type can be install in a chassis rack,unified supply power.So that reducing the cable, the structure is simplified and easy to manage and maintain.
This chassis rack support hot plug,Can choose single power supply or dual power supply.If choose dual power supply,the two power will supply power at a same time,to reduce the load of each power,prolong the service life of the power supply.When there is a power failure, the other a power can be an independent power supply.Make the fiber media converter work without interruption.For power supply repair and replacement does not need to pull out the fiber media converter,also does not need to dismantle the chassis from the rack, just pull out the defective power supply from the back rack for repair or replacement.Maintenance is very convenient and quick.So that provide a highly relability,high-capacity, high integration and high performance and cost-effective fiber-optic network center solutions for fiber optical ethernet network system.Has a stable, high power capacity, easy operation, easy maintenance and other notable features.

Technical parameters:
Slots number: 16 slots
Input:AC100～260V，50～60HZ
Output:DC5V
Ripple:≤50mv
Noise≤50mv
Power protection:over voltage,over current,short circuit
Operating Temperature:0～50℃
Storage Temperature:-20℃～70℃
Relative Humidity:5%～95%
Dimensions:485×245×90mm(L×W×H);19inch 2U
(fiber media converter card type technical parameters is the same as desktop type fiber media converter)

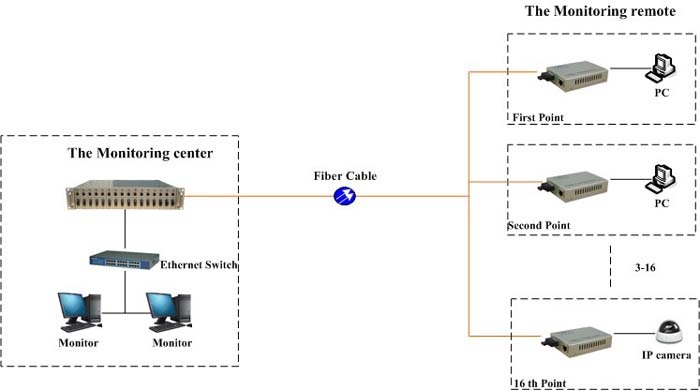

CJ-E16-2U fiber media converter chassis typical networking solutions:
