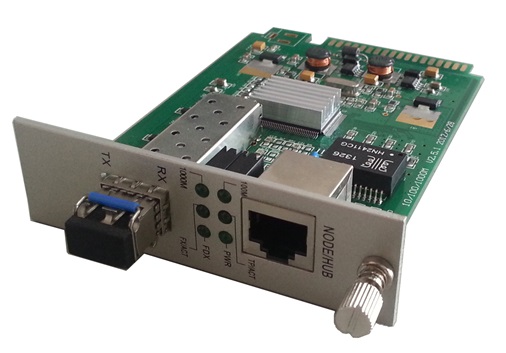

Gigabit Ethernet Fiber Media Converter

Gigabit Ethernet  Fiber Media Converter（Electric To Optic Converter） is designed to convert data signal between 10/100/1000BaseT(X) to 1000Base SX/LX/ZX Gigabit Ethernet.The media converter is connected between single Fiber cable and Twisted cable segments with network operating smoothly.The Ethernet transmission distance of 100 meters from copper extended to 550m (multimode fiber) or 100 km (single mode fiber).Using sophisticated switching core, support hot-swappable,with flexible, efficient, reliable, etc。It's widely used in Telecommunications, Broadcasting, Broadband networks, Million high-definition video surveillance ect where require high-performance, high-reliability network environment

Features:

1、The Fiber Optic is 1000M full duplex and the Electric interface is 10/100/1000M automatically configure in TP port
2、The Max transmission distance: Single mode 80KM。
3、Using sophisticated switching core and ?large capacity of cache.
4、Supports LFP(Link Fault Pass-Through),Broadcast storm protection, Balanced Traffic, Isolate conflicts and Detection error.
5、Compliant with IEEE802.3z , 1000Base-SX/LX/ZX，IEEE802.3ab1000Base-T Standards

6、High-quality laser device has good optical properties, electrical properties and temperature stability.
7、 Science Circuit layout , anti-interference ability, can effectively prevent lightning.
8、Working status indicator is complete, which can easily manage devices.
9、External professional switching power supply, security and stability. Power consumption is less than 4W。
10、Built-in lightning protection circuit,greatly reduce the damage caused by lightning induction.

Specifications

Fiber Optical Interface:
Fiber Optical Connector:SC/FC/ST，1000Mbps（1 or 2 core）
Fiber Optic（Single mode single fiber）:：8/125，8.7/125，9/125，10/125μm

10/100M Ethernet Interface:
Standards:Compliant with IEEE802.3z/AB 1000Base-T，1000Base-SX/LX
The Rate:10/100/1000M adaptive,full/half duplex automatical
The connector：RJ45

Working Environment:
Power supply :AC100 ～ 265V / DC5V
Power consumption:<5W
Operating Temperature:0℃ ～ 50℃
Storage Temperature:-40℃ ～ +70℃
Relative Humidity:95 %
