Fiber optic transceiver series

10/100M Ethernet Fiber Media Converter

fbier: 1~2
SPEED:10/100M
PortS:1~8
Product description: 10/100M Fiber Media Converter（Electric To Optic Converter） is designed to convert data signal between 10/100 Base-TX and 100 Base-FX fast Ethernet
INQUIRY

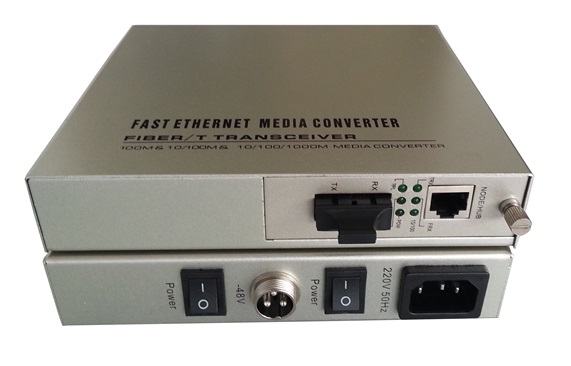

10/100M Ethernet WDM Fiber Media Converter:

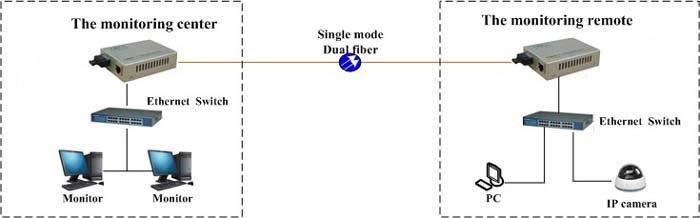

10/100M Fiber Media Converter（Electric To Optic Converter） is designed to convert data signal between 10/100 Base-TX and 100 Base-FX fast Ethernet.The media converter is connected between single Fiber cable and Twisted cable segments with network operating smoothly.The Ethernet transmission distance of 100 meters from copper extended to 2 km (multimode fiber) or 120 km (single mode fiber).Using sophisticated switching core, support hot-swappable,with flexible, efficient, reliable, etc。It's widely used in Telecommunications, Broadcasting, Broadband networks, Million high-definition video surveillance ect where require high-performance, high-reliability network environment

Features:

1、10M/100M Adaptive,full/half duplex automatically configure in TP port。
2、The Max transmission distance:Single mode 100KM。
3、Using sophisticated switching core and ?large capacity of cache.
4、Supports LFP(Link Fault Pass-Through),Broadcast storm protection, Balanced Traffic, Isolate conflicts and Detection error.
5、Compliant with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX,100Base-FX Standards.

6、High-quality laser device has good optical properties, electrical properties and temperature stability.
7、 Science Circuit layout , anti-interference ability, can effectively prevent lightning.
8、Working status indicator is complete, which can easily manage devices.
9、External professional switching power supply, security and stability. Power consumption is less than 4W。
10、Built-in lightning protection circuit,greatly reduce the damage caused by lightning induction.

Specifications

Fiber Optical Interface:
Fiber Optical Connector:SC/FC/ST，100Mbps（1 or 2 core）
Fiber Optic（Single mode Single fiber）：8/125，8.7/125，9/125，10/125μm

10/100M Ethernet Interface:
Standards:Compliant with IEEE 802.3/802.3u，IEEE 802.1Q(VLAN)
The Rate:10/100M adaptive,full/half duplex automatical
The connector：RJ45

Working Environment:
Power supply :AC100 ～ 265V / DC5V
Power consumption:<5W
Operating Temperature:0℃ ～ 50℃
Storage Temperature:-40℃ ～ +70℃
Relative Humidity:95 %

Model	100M Ports	Speed	Fiber		distance	Optical	Power
BH-MSC-2	1	10/100M	Multi mode	Double	2KM	1	AC100~260/DC-48V
BH-SSC-25	1	10/100M	Single mode	Double	25KM	1	AC100~260/DC-48V
BH-1SSC-25	1	10/100M	Single mode	Single	25KM	1	AC100~260/DC-48V

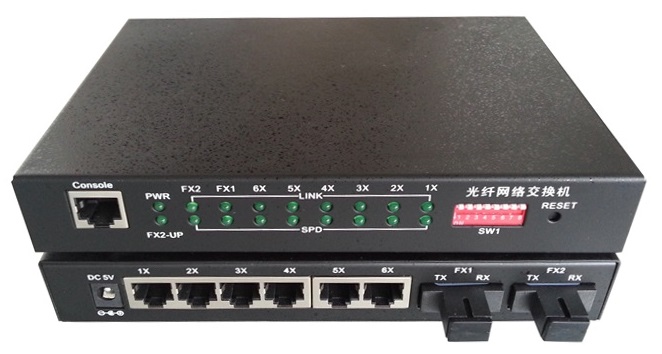

BH-SSC-25-4E	4	10/100M	Multi mode	Double	2KM	1	AC100~260/DC-48V
BH-SSC-25-8E	8	10/100M	Single mode	Double	25KM	1	AC100~260/DC-48V
BH-2SSC-25-4E	4	10/100M	Single mode	Double	25KM	2	AC100~260/DC-48V
BH-2SSC-25-8E	8	10/100/M	Single mode	Double	25KM	2	AC100~260/DC-48V
BH-OFE8、 8 All-optical exchange	1	10/100/M	Single mode	Double	20KM	8	AC100~260/DC-48V
